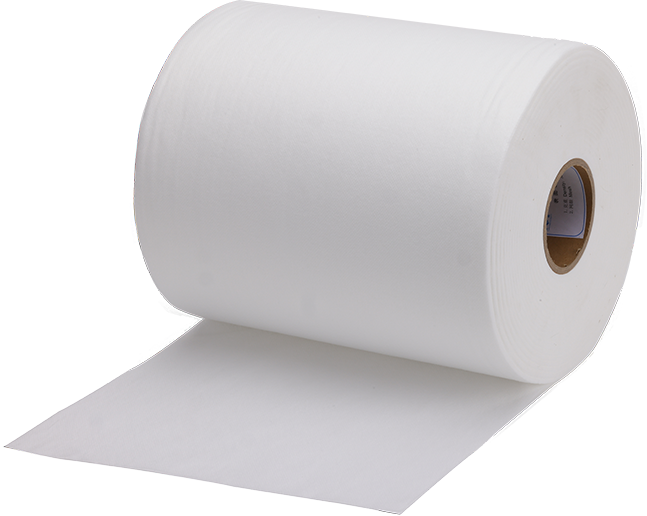

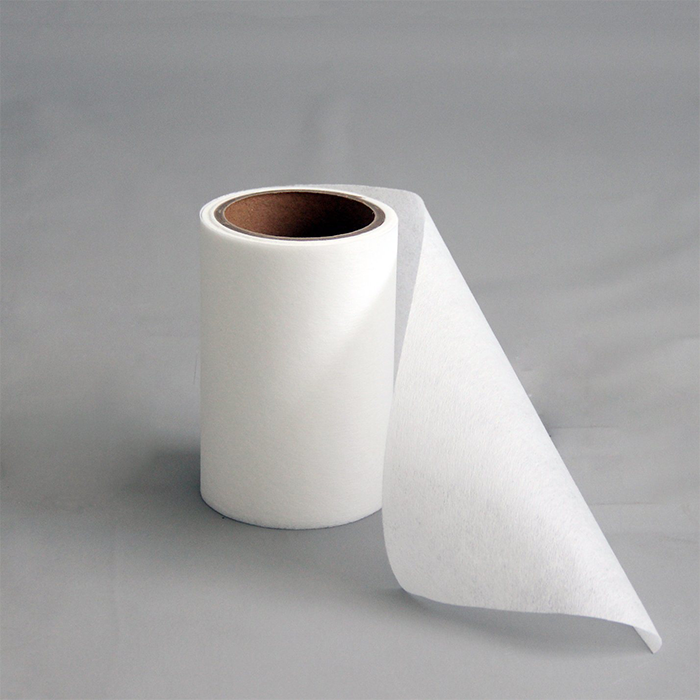

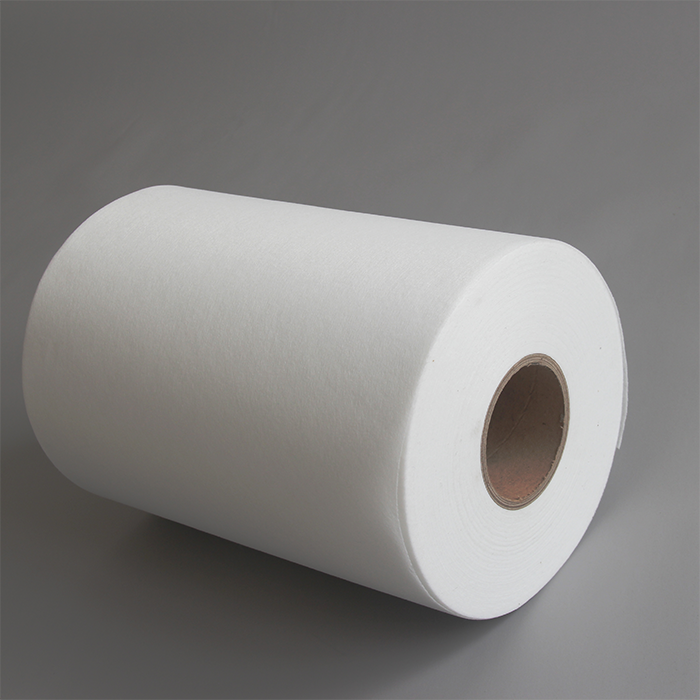

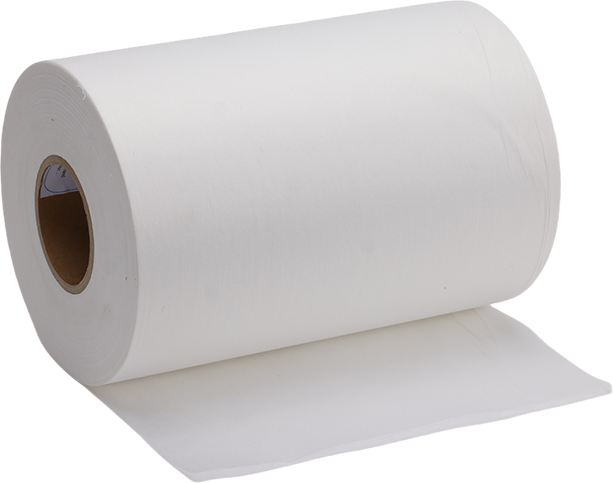

Surface veil
This product is made from polyester fibers using a special non-woven process. It features high tensile strength, excellent elongation, and softness, ensuring that no wrinkles form during material processing. It enhances the surface properties of the product and provides superior protection for molds, making it an ideal primary material for composite surface treatment.
Beautify the surface of the product
UV-resistant
Durable and preservative
#
Product Features

Product Performance

Wear resistance and corrosion resistance
UV resistance
Enhance the appearance of the product's surface and improve its finish.
Easy to apply, reduces material usage and application time, and minimizes delamination.
Product Specifications

Product Parameters

Item Number

Standard

weight range

(g/m2 )

Width range

(mm)

Tensile strength

Elongation

at break

Applicable Processes and Applications

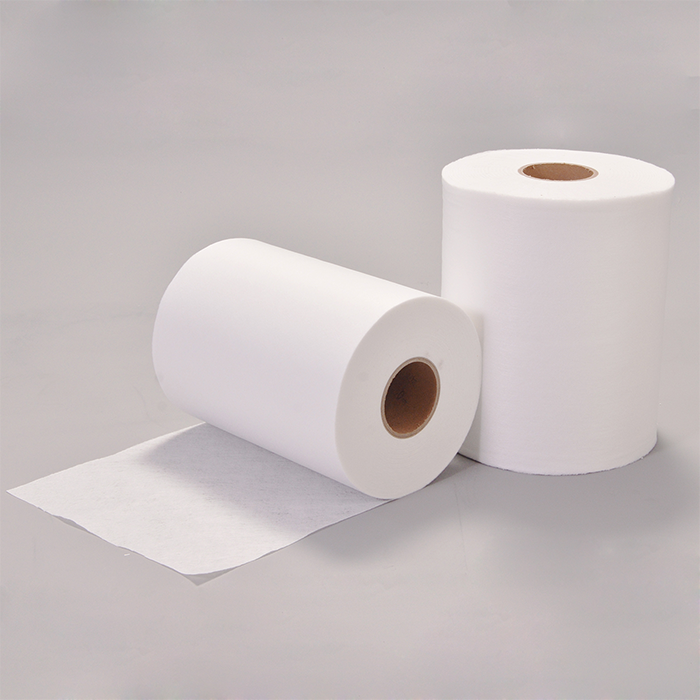

Polyester

surface veil




35

2100-3600

MD(N/5CM) 42

35

Pull-winding, filament winding,


hand lay-up, RTM, compression


molding, vacuum infusion, etc.


CD(N/5CM) 22

36

40

2100-3600

MD(N/5CM) 120

45

CD(N/5CM) 90

110

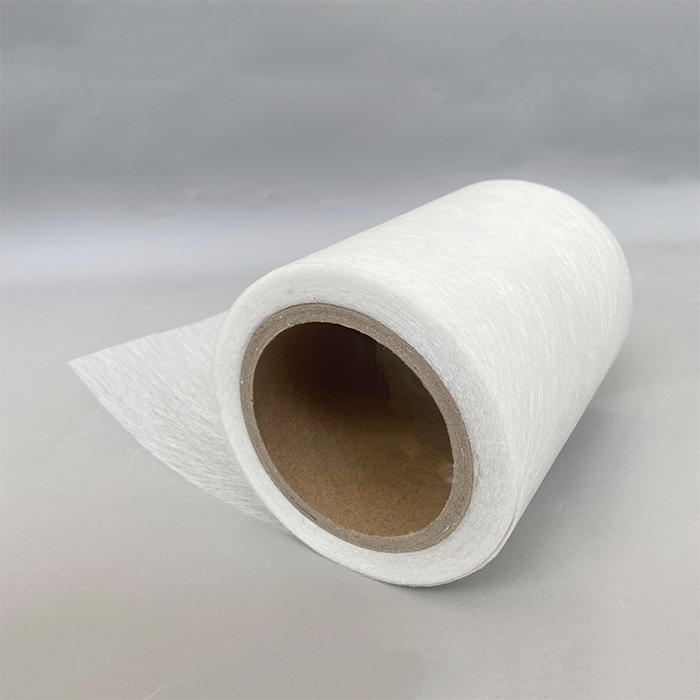

Fiberglass

surface veil




30

2000

MD(N/5CM) 212.3

Combustible

matter: 9%


Moisture

content: 0.2%


CD(N/5CM) 207.6

50

MD(N/5CM) 217

CD(N/5CM) 208.6

90

MD(N/5CM) 224.8

CD(N/5CM) 207.6

#

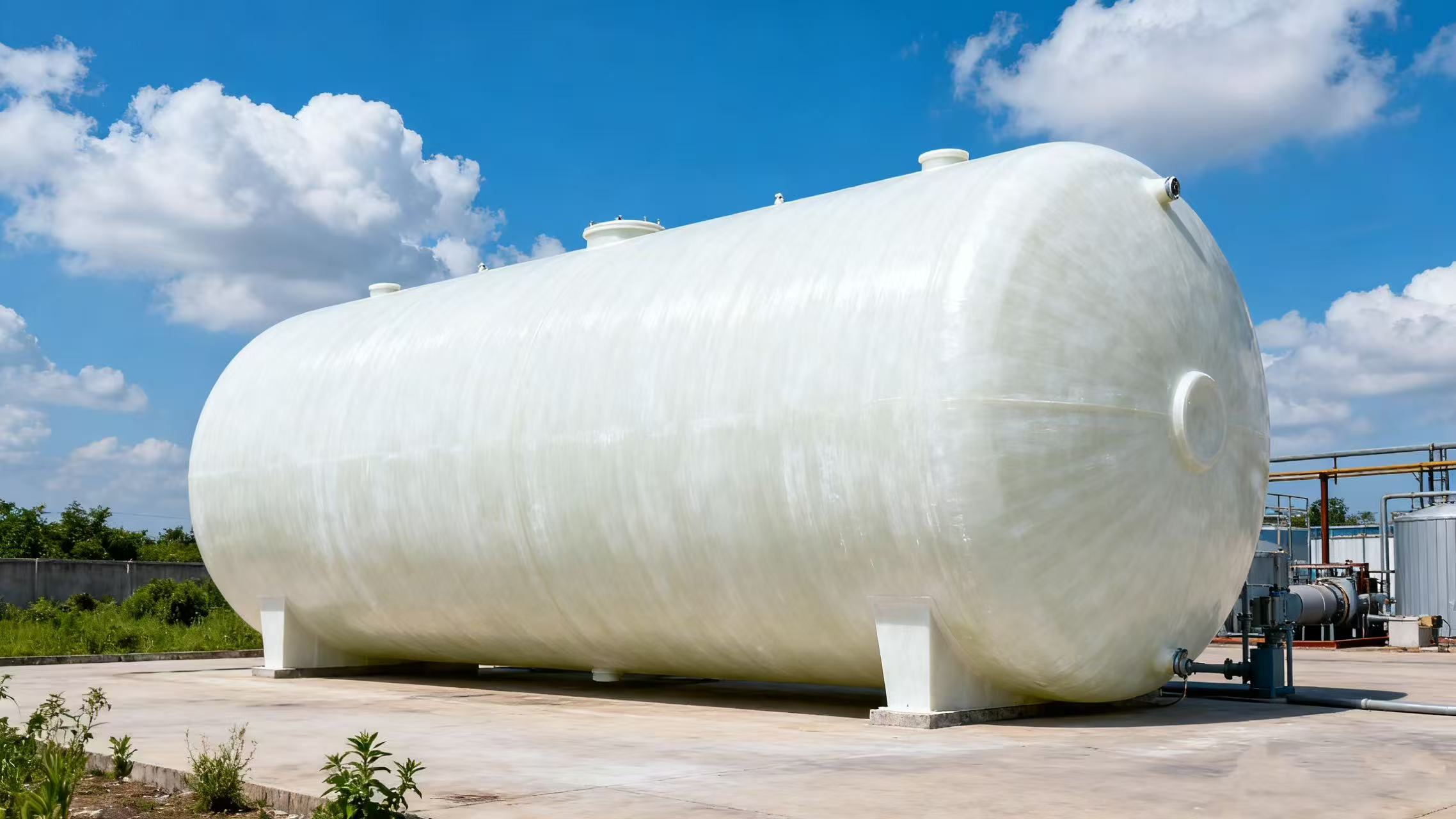

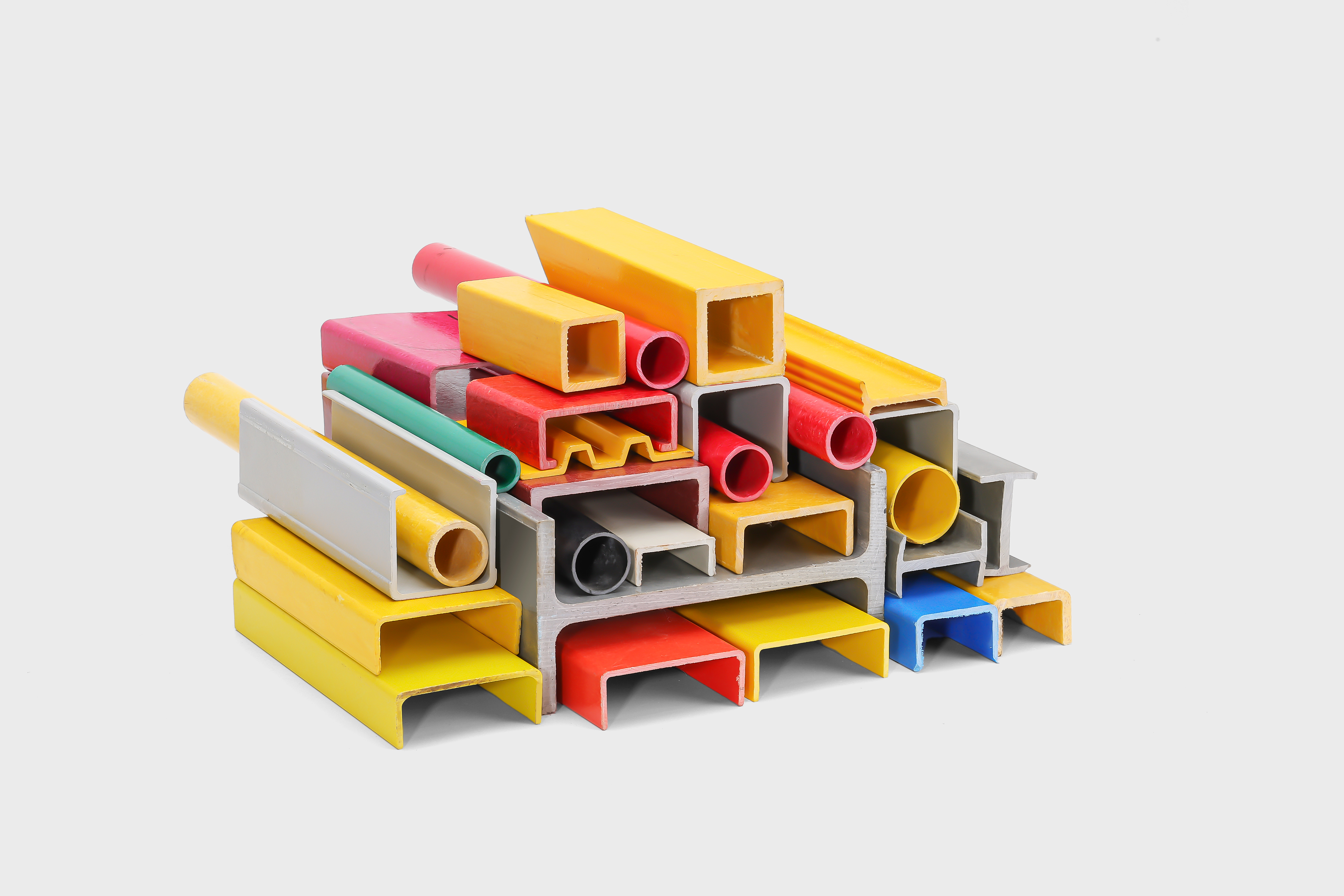

Application Scenarios

Product Parameters

#
#
#
#
Packaging and Storage

Product Parameters

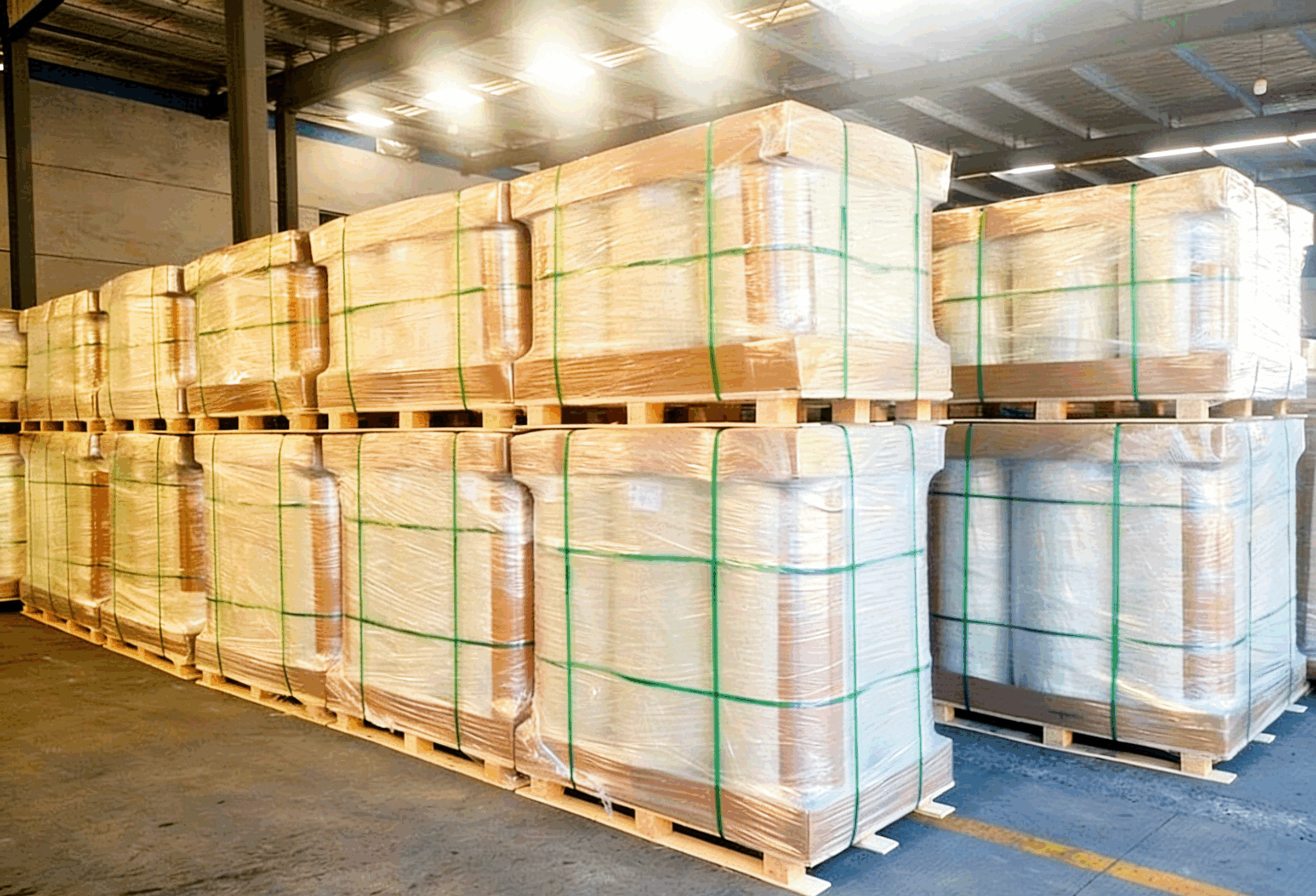

Each roll is wound on a 76 mm (3-inch) inner diameter paper core, fully wrapped in stretch film, stacked vertically or horizontally on pallets and re-wrapped with stretch film. Every roll carries a label listing specs, item code, roll weight, width, serial number and production date for full traceability; each pallet is also labeled with full traceability data.



For optimal performance, store fiberglass materials in cool, dry warehouses at 15℃–35℃ and 35%–65% RH. Keep away from heat and water to prevent damage and contamination. Use rolls promptly after unpacking. Repack unused material tightly and avoid open-air exposure to preserve shelf life.

# #
Custom Consultation

Call To Action

All product lines are available worldwide and can be customized upon request. If needed, please contact your Tianming consultant to inquire about other width options.
