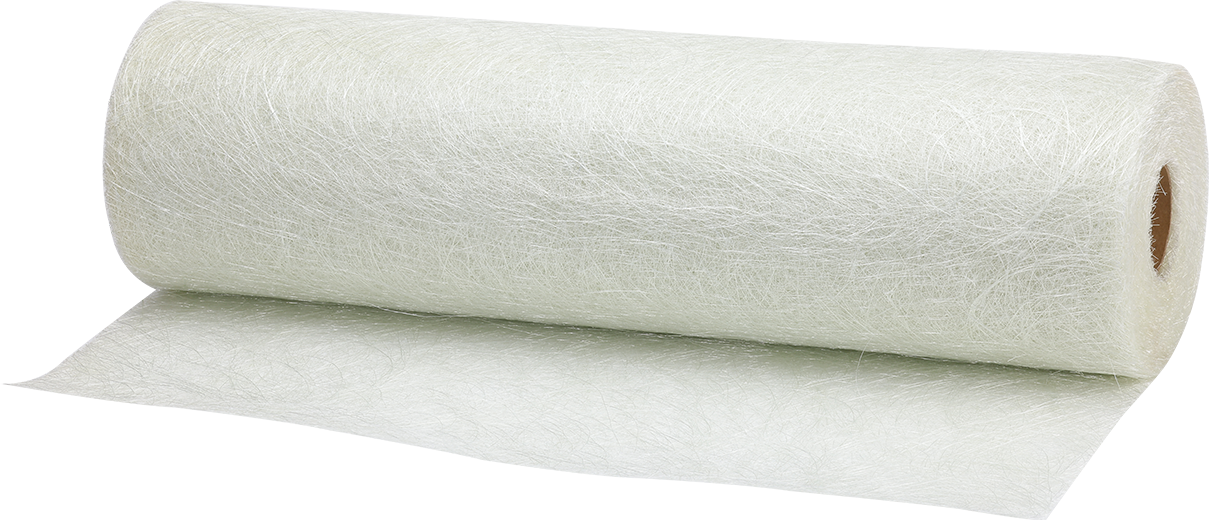

Continuous filament mat

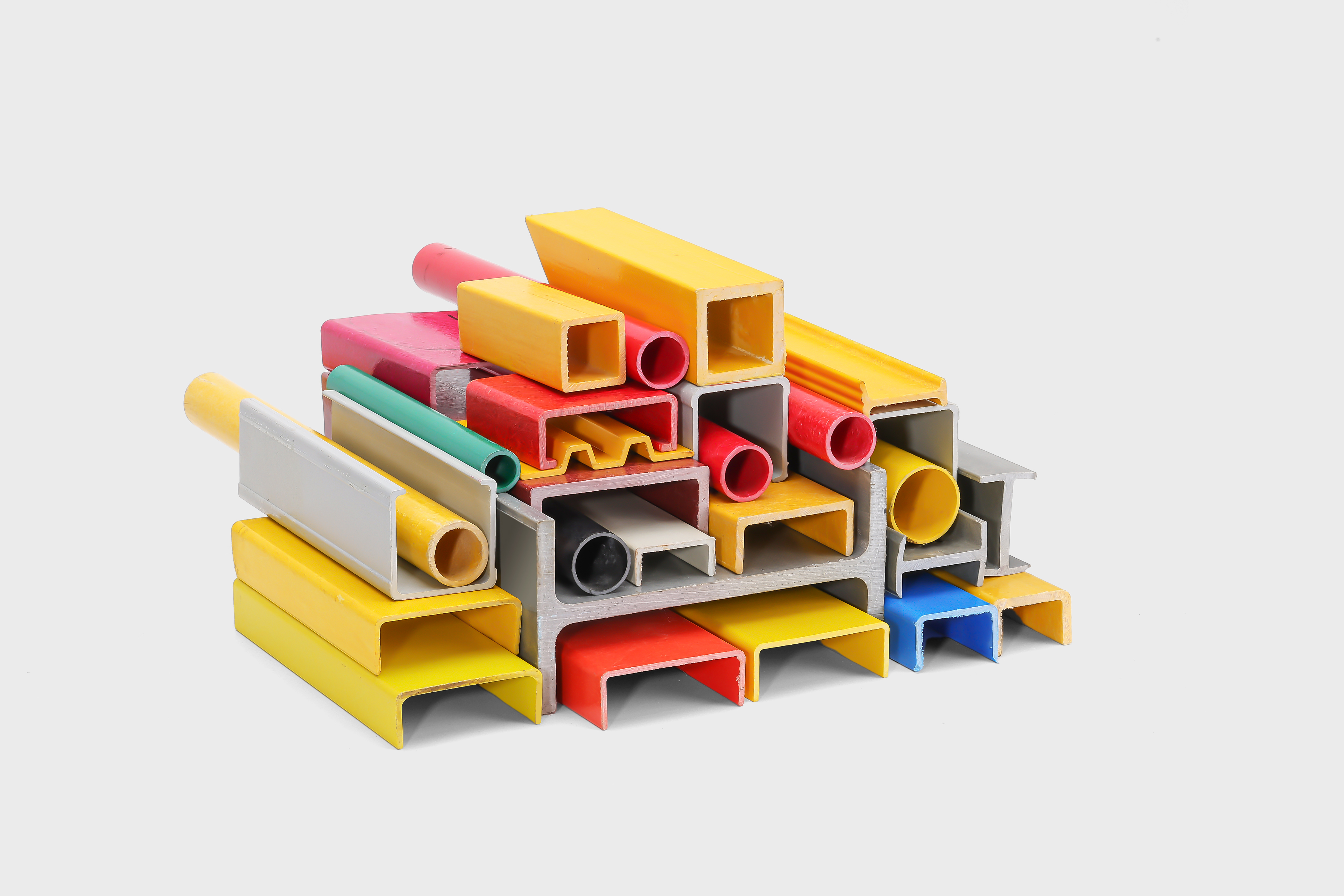

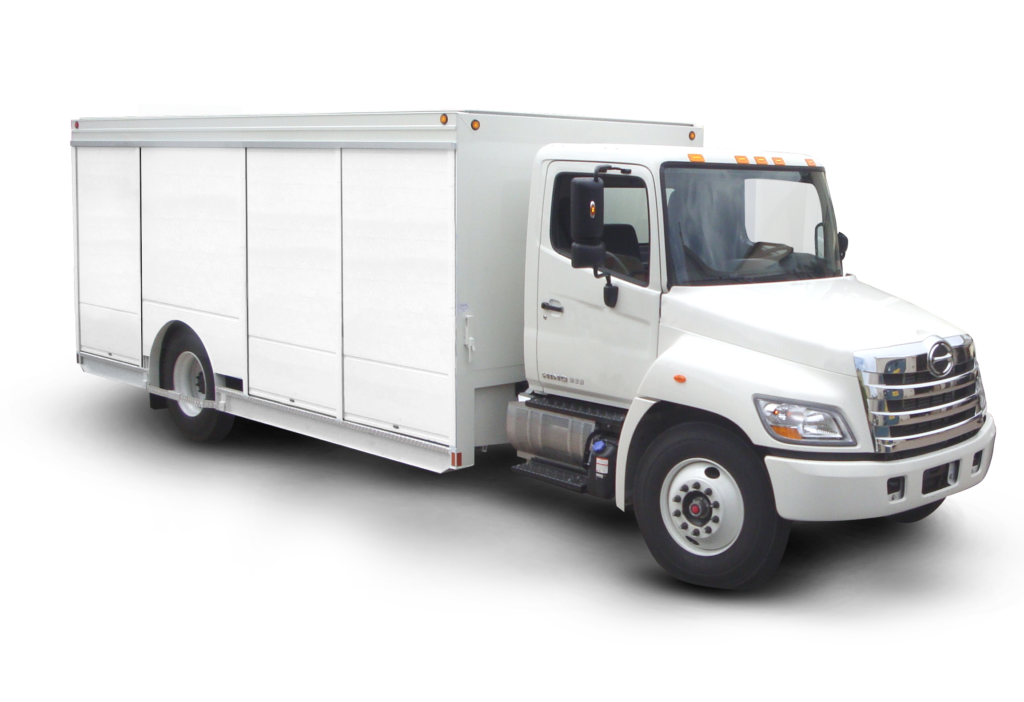

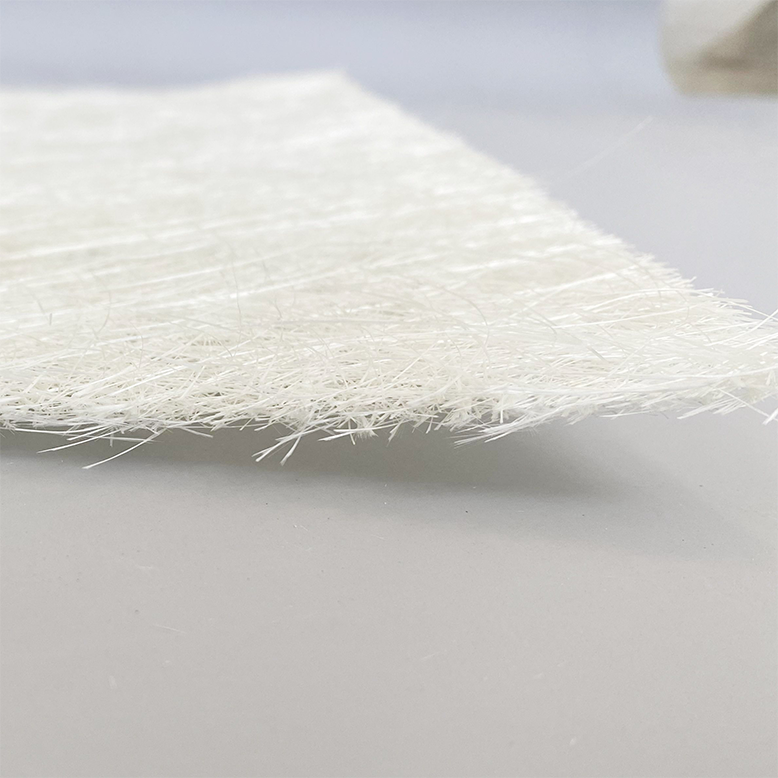

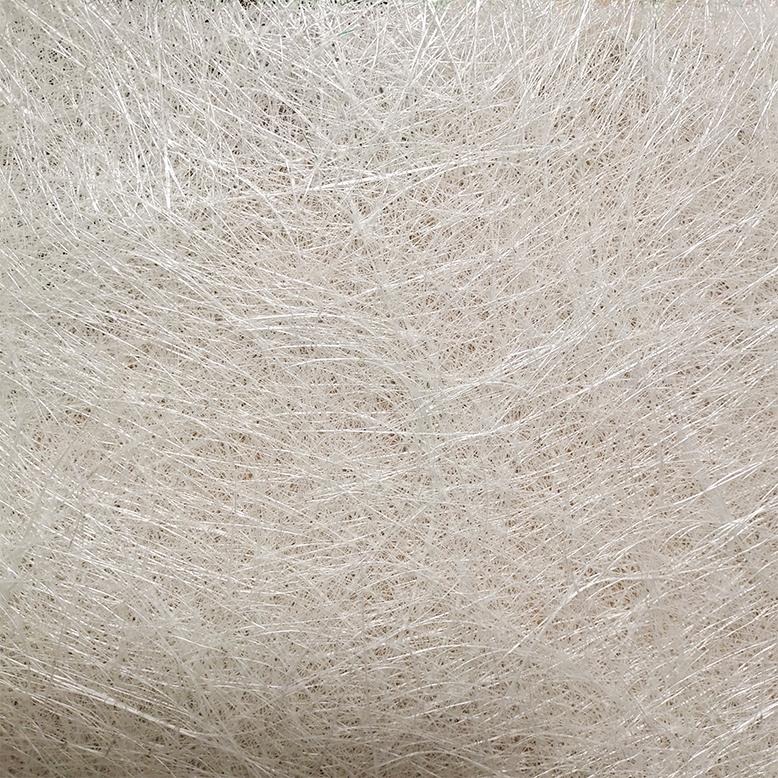

Continuous fiberglass mat (continuous mat for short) is produced by evenly spreading continuous glass strands in random free-fall loops, then bonded and compacted with binder. It fits major FRP molding processes: pultrusion, RTM, filament winding and compression molding. Applications include automotive interiors, sun visors, rear shelves, spare tire covers, fenders, refrigerated truck enclosures, transformer high-voltage insulators, reinforced profiles and window frames. It also reinforces GMT sheets, asphalt felts, plastic flooring and geotextiles.

Tianming offers four types customized for different processes:
Pultrusion/Lamination, Molding/Foaming, Preforming and Closed Molds.
Excellent insulation performance
Good corrosion resistance
High temperature resistance
Ideal for pultrusion processes
#
Product Features

Product performance

High product strength, smooth surface and excellent moldability.
Great chemical stability, heat resistance and insulation.
Anti-shifting & erosion-resistant against resin flow, ideal for resin injection molding.
Fast, uniform resin wet-out to meet high-speed pultrusion requirements.
Customizable performance; adjust mat layers & compactness for special processes.

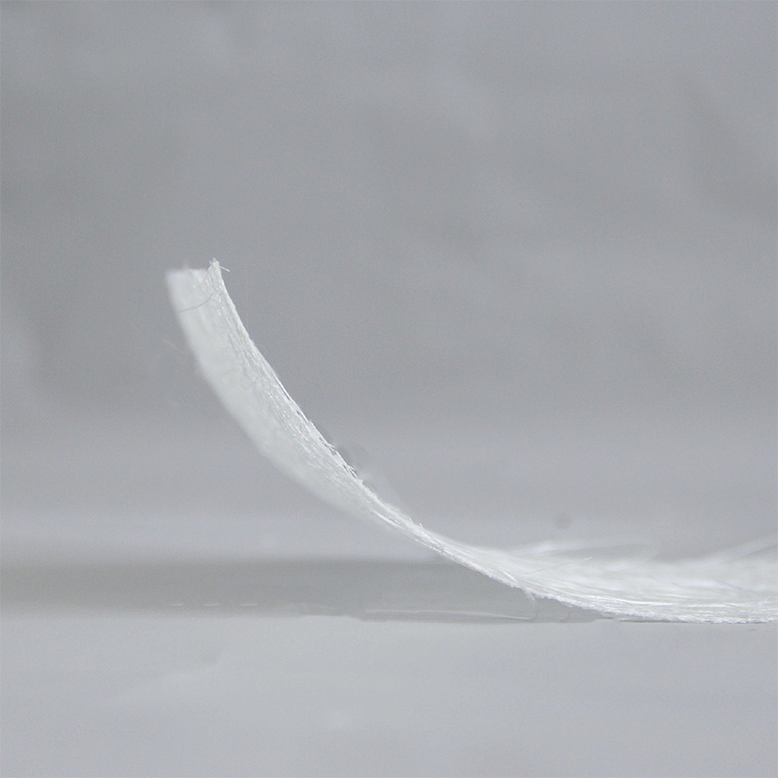

Flexible & easy to cut, good film covering property, suitable for complex molds.
Product Specifications

Product Parameters

Item NumberProcessData Sheet
CFM8101Pultrusion / Lamination

image.gifCFM for pultrusion and lamination.pdf

CFM8102
CFM7102Molding/Foaming

CFM for molding and foaming process.pdf

CFM7101Preforming

CFM for preforming.pdf

CFM6101Closed Molds

CFM for closed molds.pdf

CFM6102
#

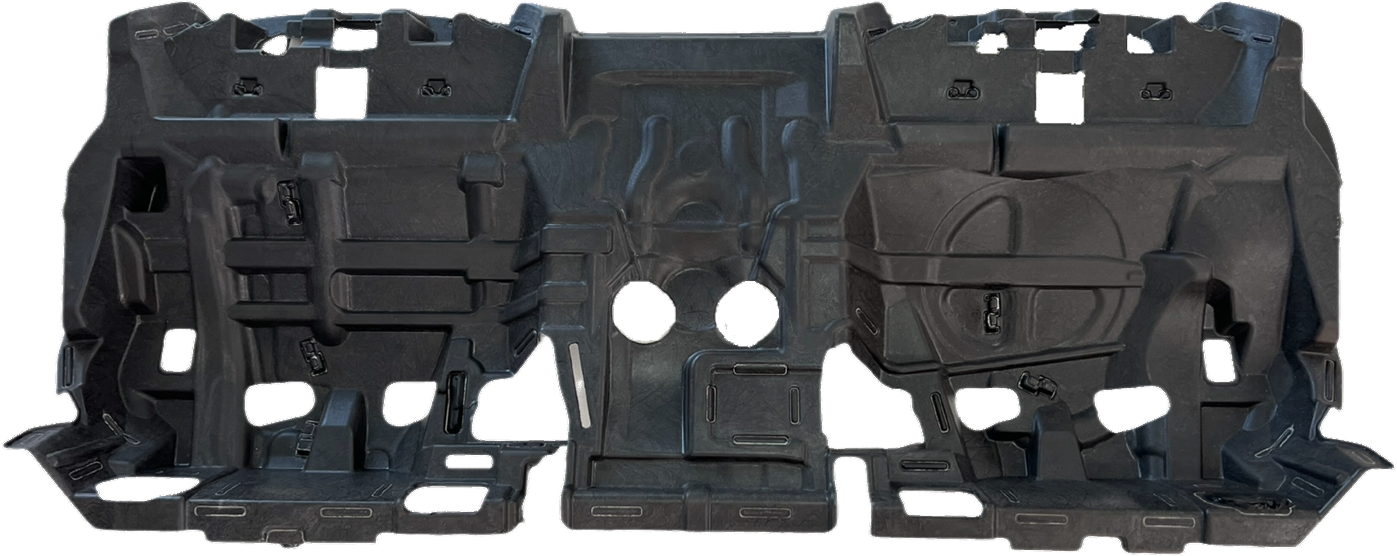

Application Scenarios

Product Parameters

#
#
#
#
#
#
Packaging and Storage

Product Parameters

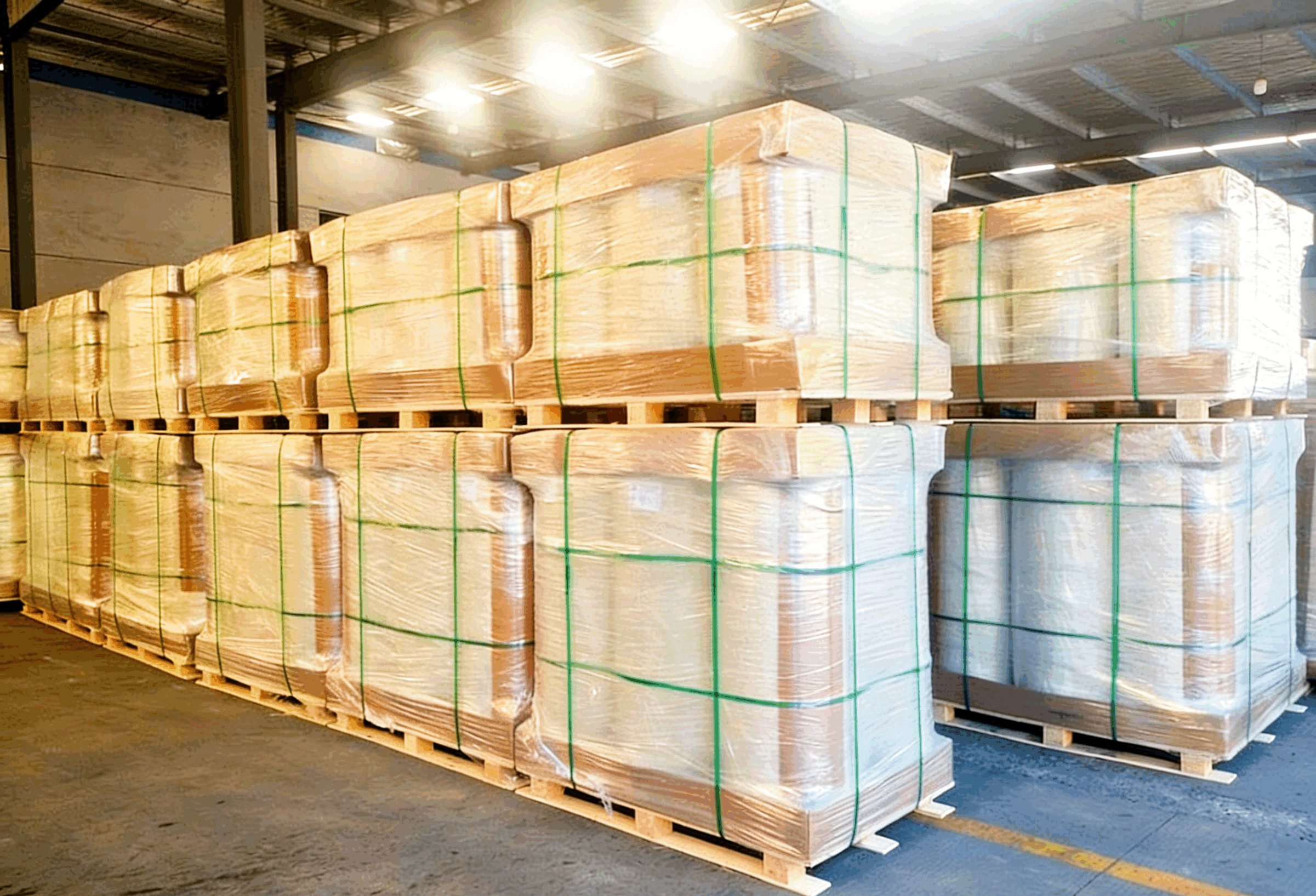

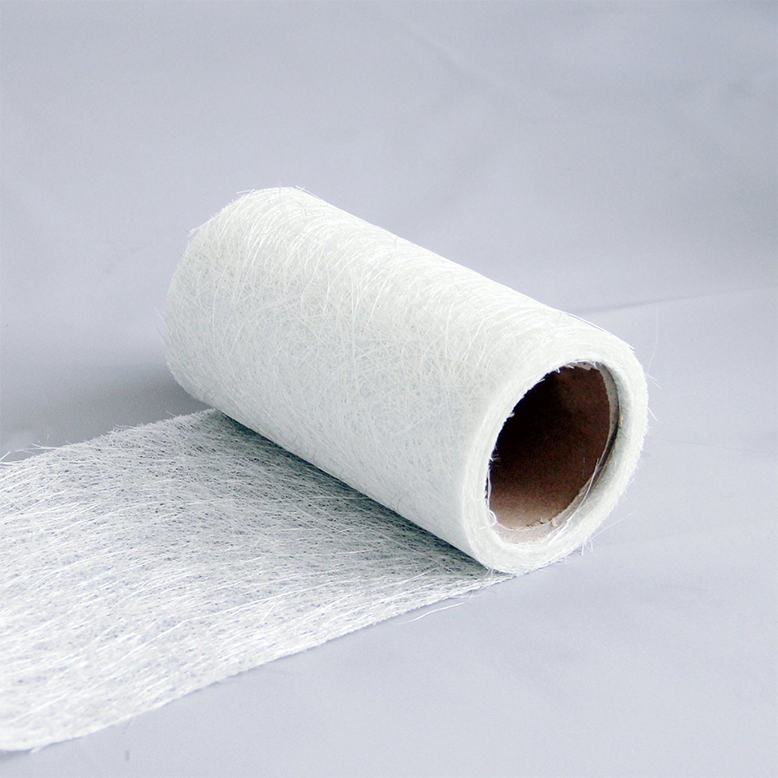

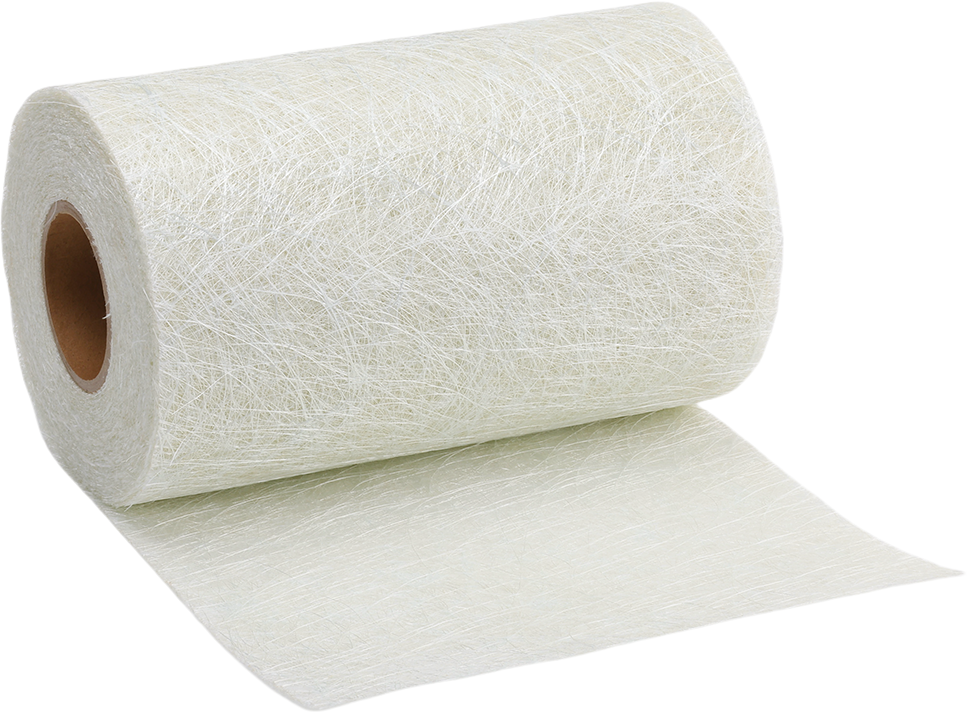

Each roll is wound on a 76 mm (3-inch) inner diameter paper core, fully wrapped in stretch film, stacked vertically or horizontally on pallets and re-wrapped with stretch film. Every roll carries a label listing specs, item code, roll weight, width, serial number and production date for full traceability; each pallet is also labeled with full traceability data.



For optimal performance, store fiberglass materials in cool, dry warehouses at 15℃–35℃ and 35%–65% RH. Keep away from heat and water to prevent damage and contamination. Use rolls promptly after unpacking. Repack unused material tightly and avoid open-air exposure to preserve shelf life.

# #
Custom Consultation

Call To Action

All product lines are available worldwide and can be customized upon request. If needed, please contact your Tianming consultant to inquire about other width options.
