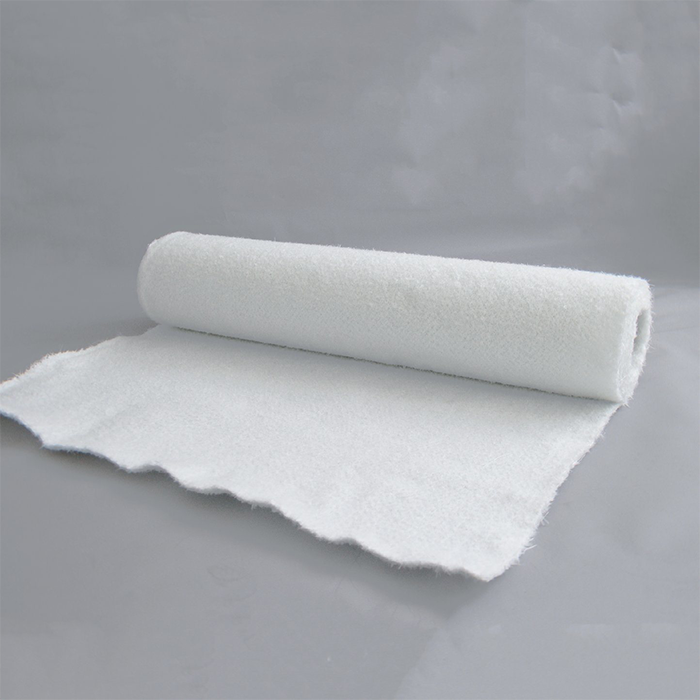

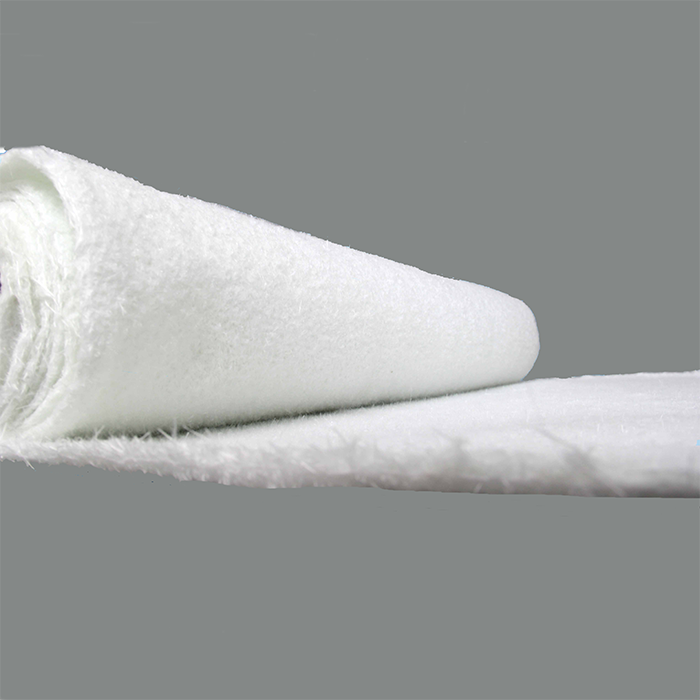

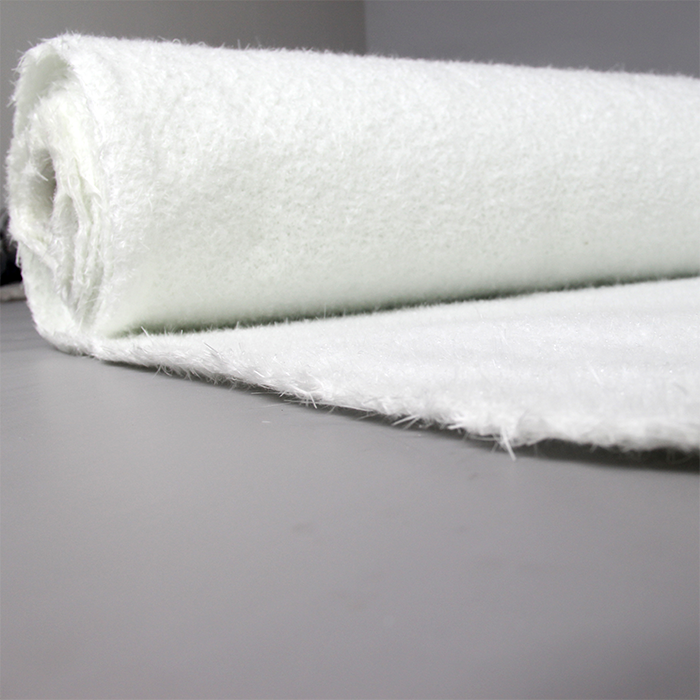

Needle mat

Needle mat is a new reinforcing substrate for composite materials. It uses needle-punching technology to interlace glass fibers between layers, forming a 3D porous structure. It features outstanding mechanical and functional properties, divided into two main series by application:

1. Reinforcement Needled Mat
Made from chopped or continuous glass fibers via needle punching to form an interlaced 3D structure. It acts as reinforcement for GMT thermoplastic sheets and pultruded profiles, widely used in automotive and FRP industries.

2. Filtration & Thermal Insulation Needled Mat
Nonwoven fabric reinforced by needle punching with electronic-grade E-glass fiber. It boasts high-temperature resistance, corrosion resistance, high porosity, and excellent air permeability, serving as a multifunctional material for filtration, heat preservation, thermal insulation, and sound absorption.

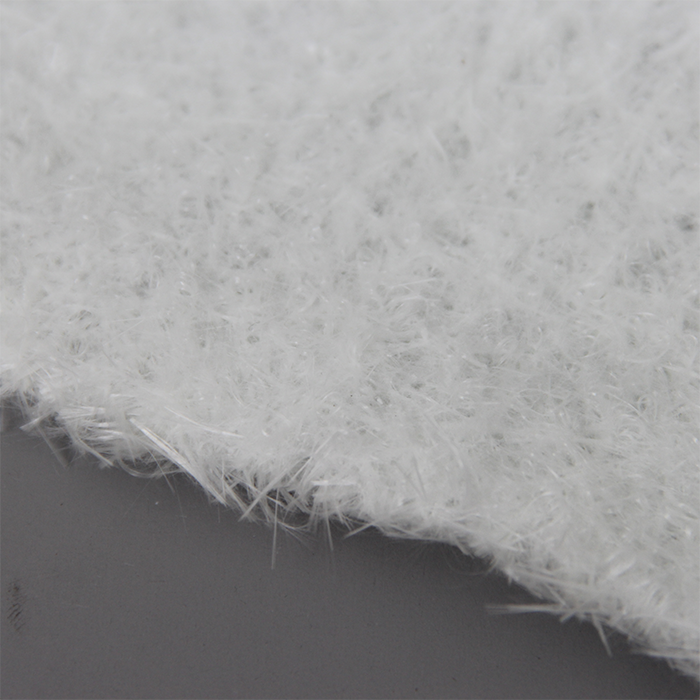

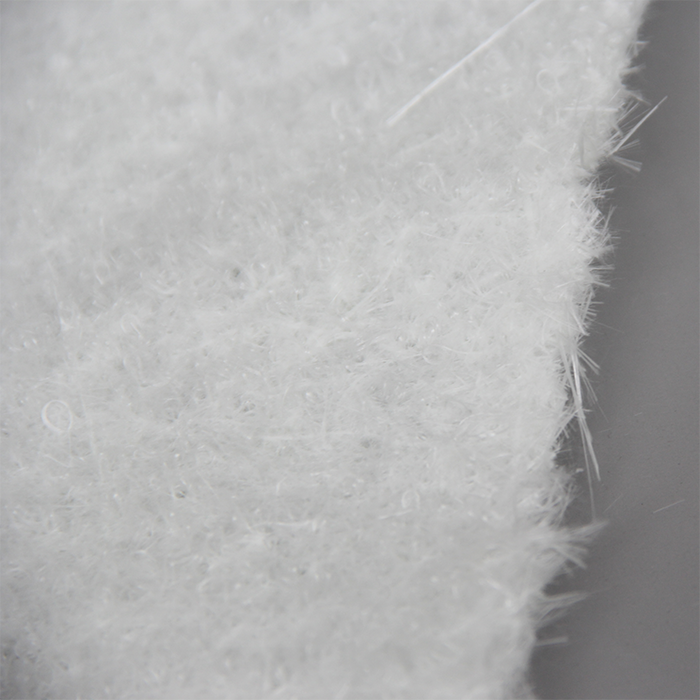

3D porous structure

Dual functions for reinforcement, thermal insulation and filtration

Product Features

Product Performance

(1) Reinforcement Needled Mat

(2) Filtration & Thermal Insulation Needled Mat

1. Uniform mechanical properties: Its 3D fiber layout reduces anisotropy and improves overall mechanical stability of finished products.

1. Superior heat insulation and flame resistance: Countless sealed micropores deliver low thermal conductivity of 0.019~0.031W/(m·K). Outperforms traditional rock wool in thermal efficiency; Class A1 fire rating, max temperature resistance up to 1200℃.

2. Stable chemistry & dimension: Resists strong acid and alkali without performance degradation; chloride ion ≤0.005%, no corrosion to metal equipment. High tensile strength, customizable cutting for complex construction.

2. Outstanding sound absorption: Porous structure absorbs over 90% sound wave to cut noise of machinery and vehicles.

3. Excellent interfacial bonding: Even fiber distribution when compounded with resin. Boosts interlayer bonding, shear resistance and impact strength for better mechanical performance in pultrusion.

3. Stable chemistry & dimension: Resists strong acid and alkali without performance degradation; chloride ion ≤0.005%, no corrosion to metal equipment. High tensile strength, customizable cutting for complex construction.

Product Specifications

Product Parameters

(1) Reinforcement Needled Mat

Item Number	Standard weight range （g/m2 ）	Width range （mm）	Standard roll weight （kg）	Applicable Processes and Applications
PNMC	250-560	950	25-40	Reinforcing materials for pultruded profiles
ENMS	300-600	950-1250	25-30	Electrical felt
FNMS	300-1500	1040-1250	30-50	GMT Sheets
PNMS	450-800	950-1250	25-30	Reinforcing materials for pultruded profiles

(2) Filtration & Thermal Insulation Needled Mat

Item Number	Standard weight range （g/m2 ）	Width range （mm）	Thickness （mm）	Roll length (m)
GSY3	300	300-2500	3	40
GSY4	450		4	40
GSY5	600		5	30
GSY6	750		6	30
GSY8	900		8	20
GSY10	1200		10	20
GSY12	1500		12	15
GSY15	1800		15	15
GSY20	2250		20	10

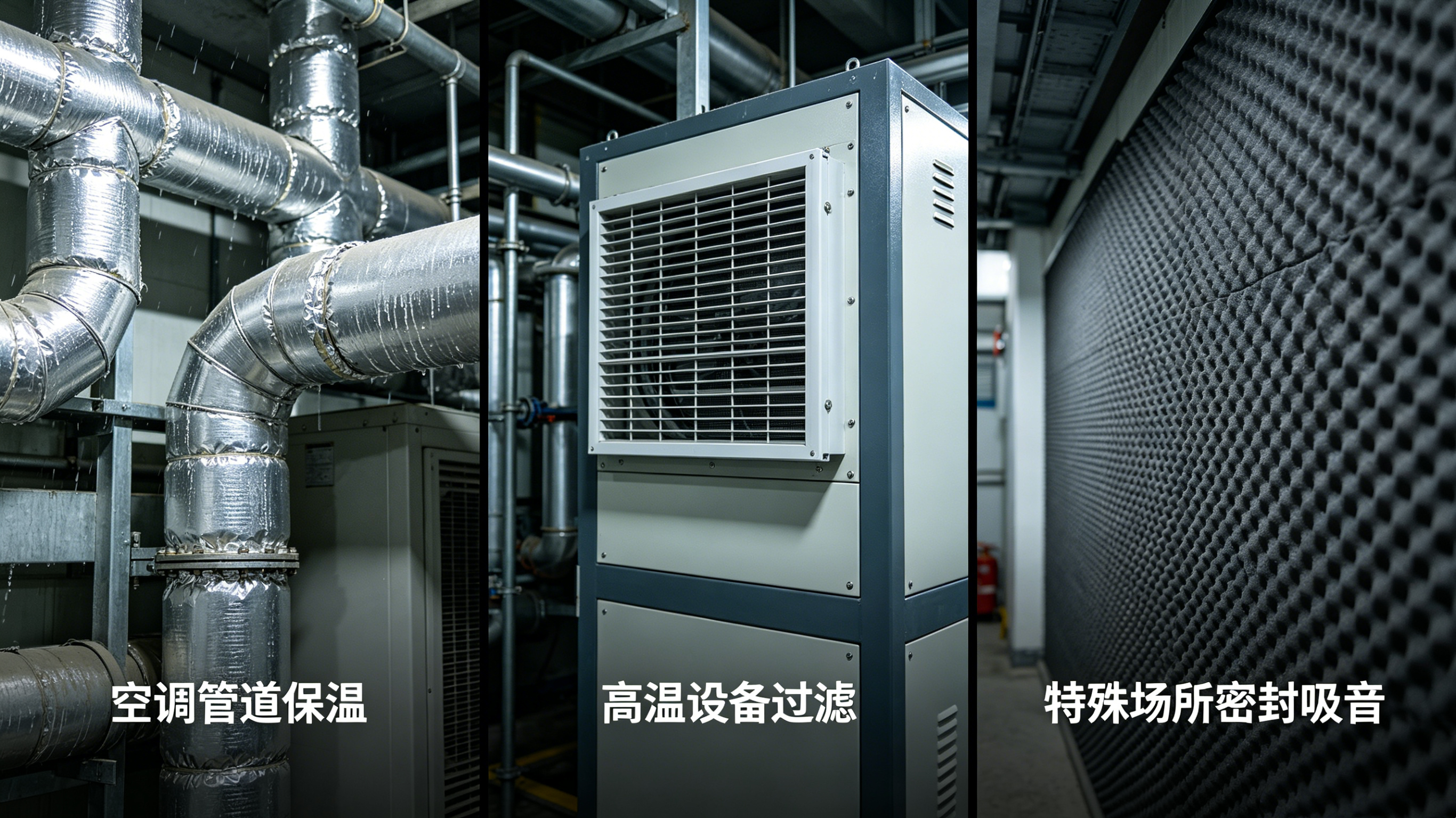

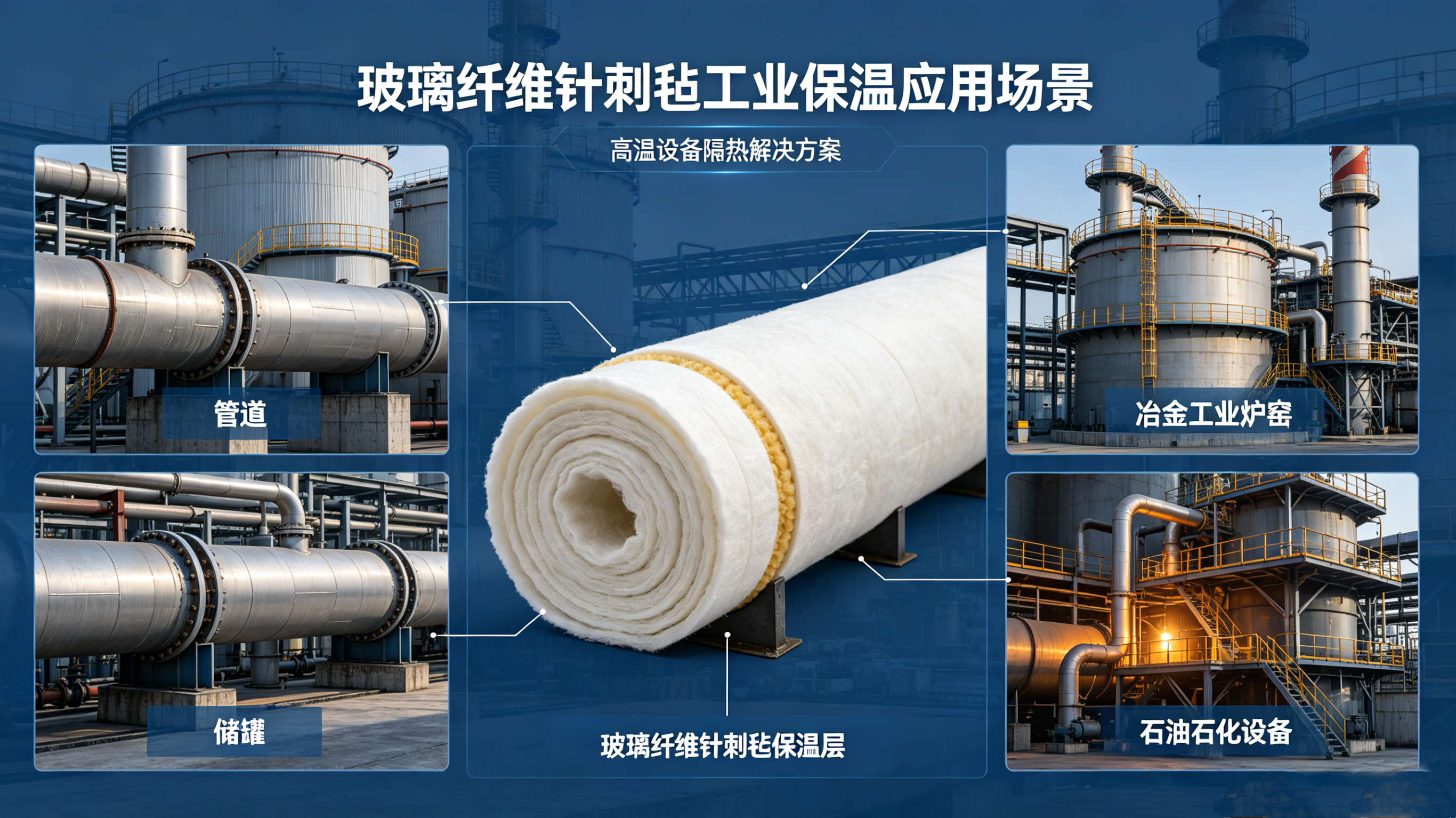

Application Scenarios

Product Parameters

Packaging and Storage

Product Parameters

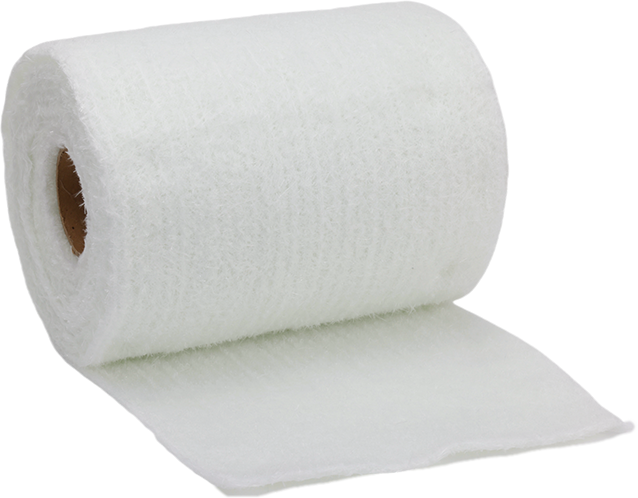

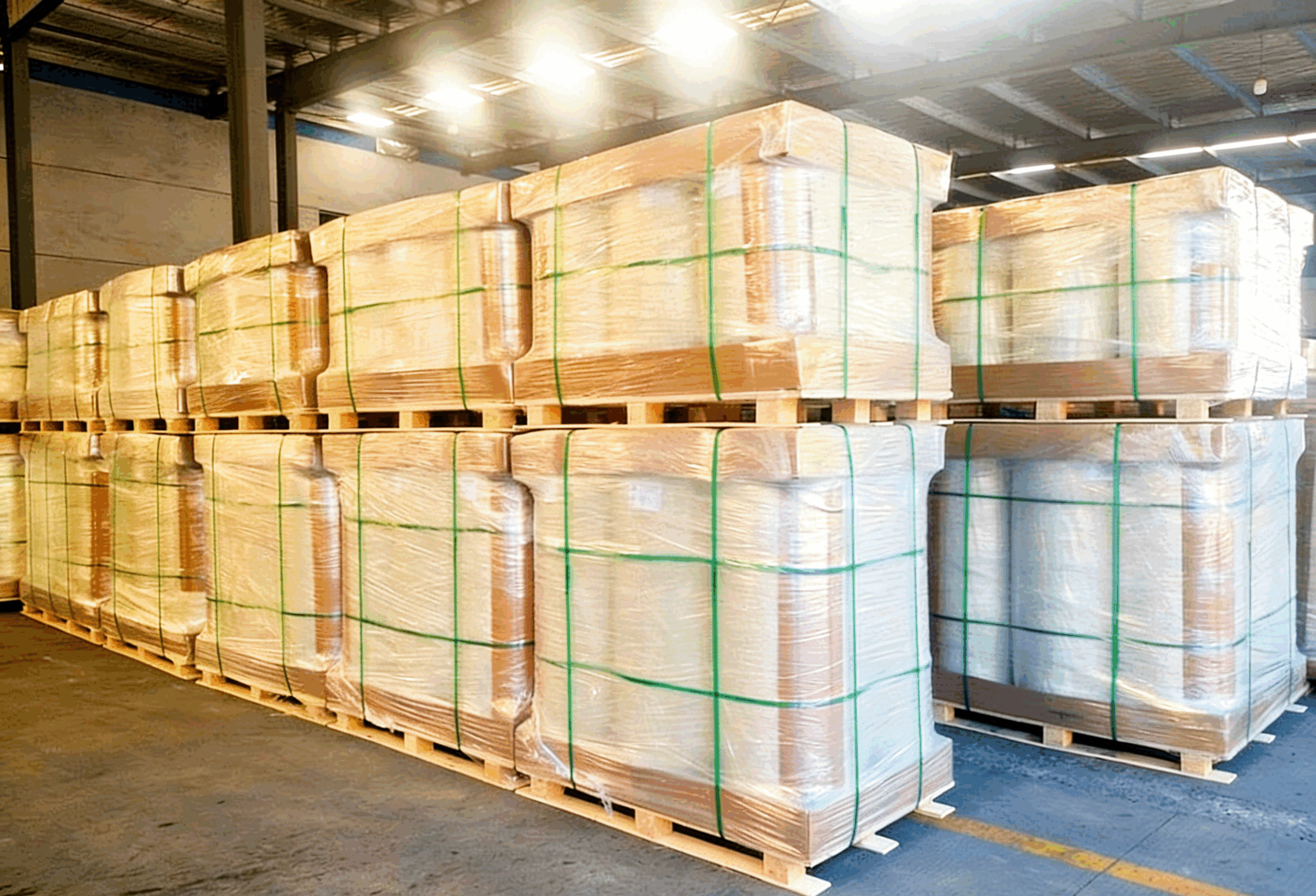

Each roll is wound on a 76 mm (3-inch) inner diameter paper core, fully wrapped in stretch film, stacked vertically or horizontally on pallets and re-wrapped with stretch film. Every roll carries a label listing specs, item code, roll weight, width, serial number and production date for full traceability; each pallet is also labeled with full traceability data.

For optimal performance, store fiberglass materials in cool, dry warehouses at 15℃–35℃ and 35%–65% RH. Keep away from heat and water to prevent damage and contamination. Use rolls promptly after unpacking. Repack unused material tightly and avoid open-air exposure to preserve shelf life.

Custom Consultation

Call To Action

All product lines are available worldwide and can be customized upon request. If needed, please contact your Tianming consultant to inquire about other width options.

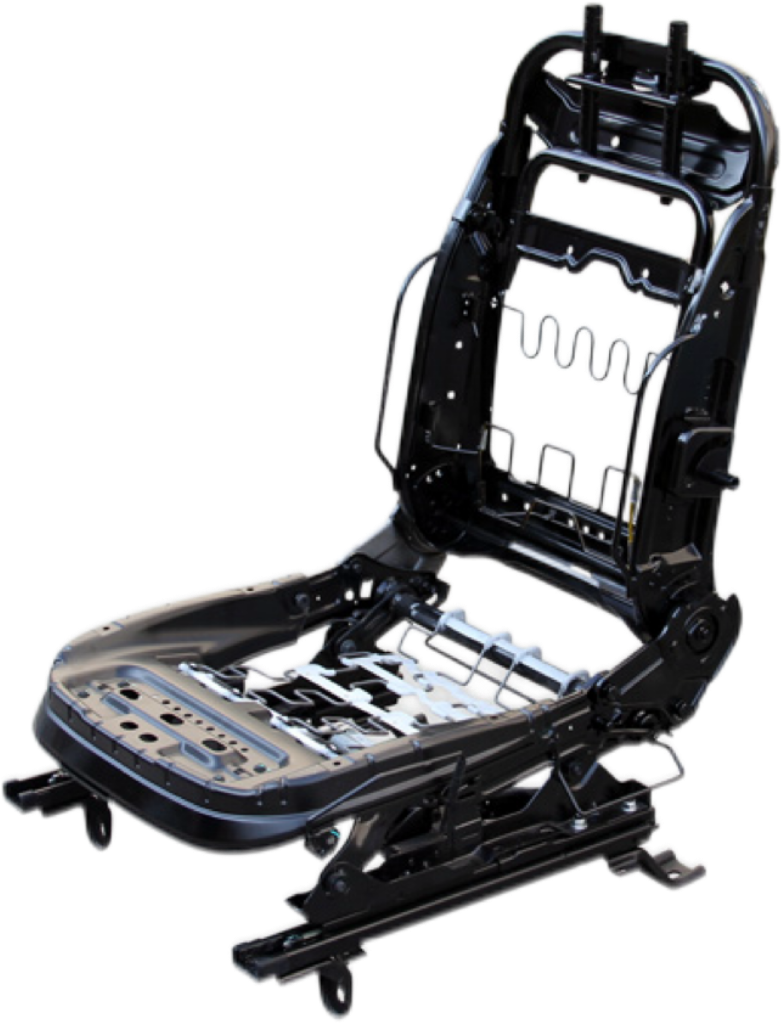

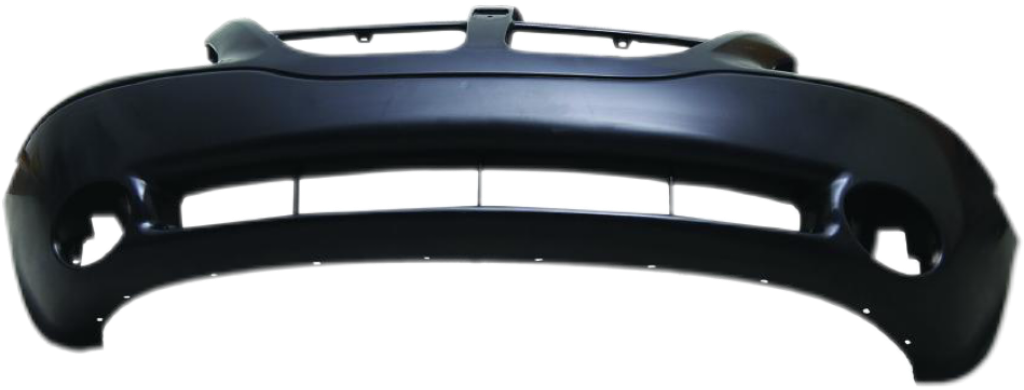

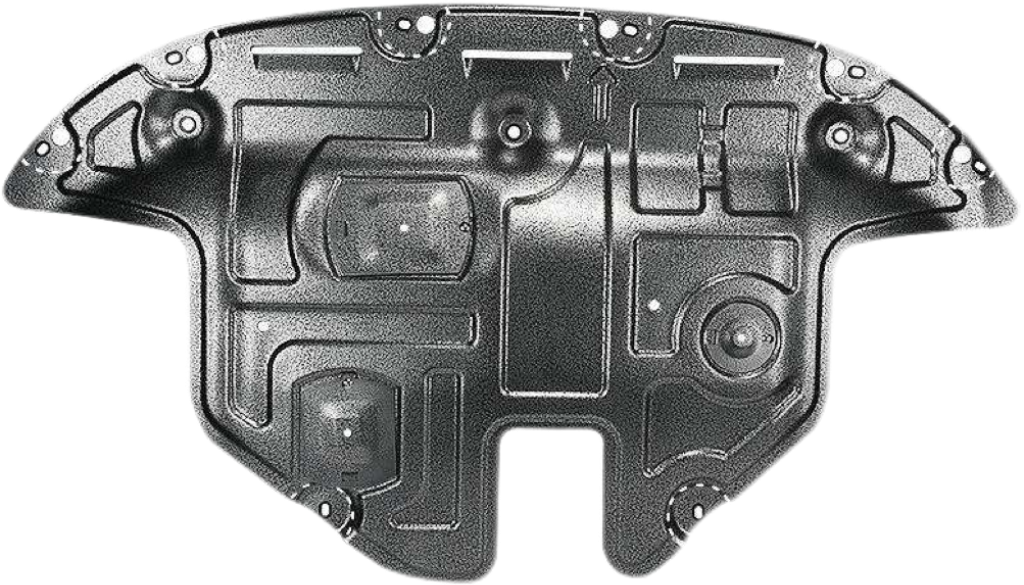

Automotive industry solutions
